Alfamacchine U300 Semi Auto Underpinner

Original price Dhs. 8,500.00
Current price Dhs. 7,990.00

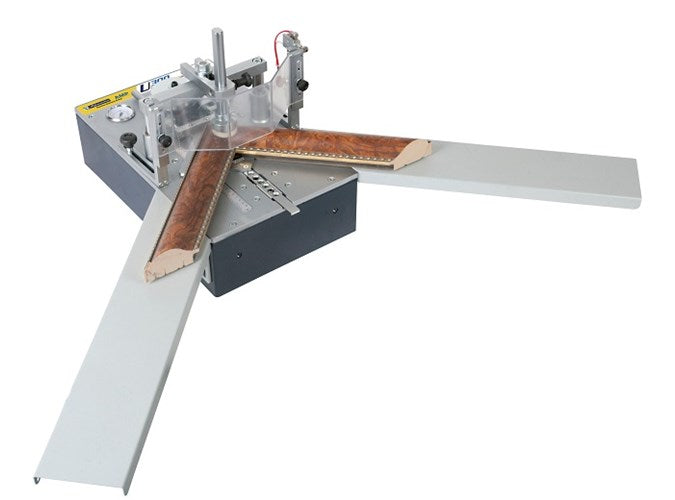

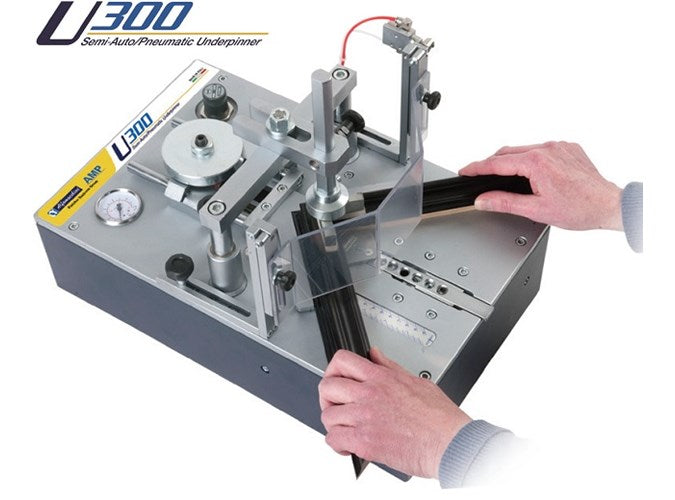

U-300 Semi-Auto Underpinner

Excellent air-op benchtop underpinner for bespoke framers looking to step up from a foot-operated machine.

  • Joins mouldings up to 60mm wide and 80mm tall. Maximum distance between v-nails 80mm
  • Uses Alfa PTM v-nails, inserted via different sizes of the v-nail block. 7mm, 10mm & 12mm blocks supplied. 5mm & 15mm blocks also available.
  • Top pressure pad pulled down by twin pistons for maximum stability, particularly when joining harder woods. Moulding stays clamped through the joining the cycle
  • Front and back v-nail stops plus unique air clamp which locks v-nail carriage to insert v-nail at any point in between
  • Working height - 300mm above the bench. Base 300mm x 480mm. 32kg.

Why buy me? Perfect when looking to step up from a foot-operated machine, more efficient production.
