Morso EFG - Miter Machine - E, Future Green - Fully Automatic, Electric
Morso EFG - Miter Machine - E, Future Green - Fully Automatic, Electric

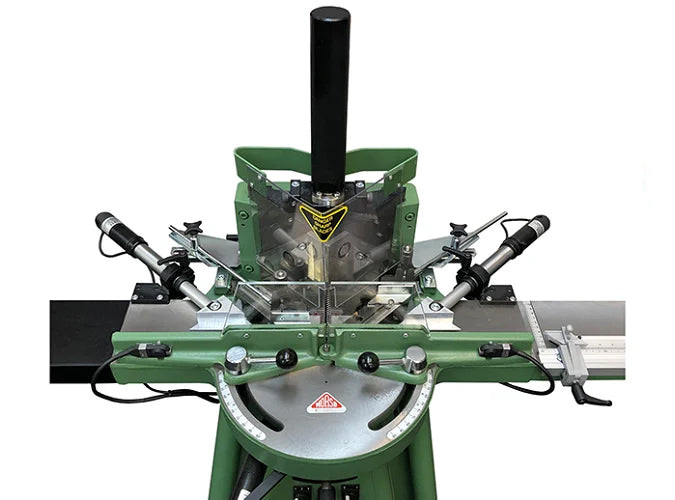

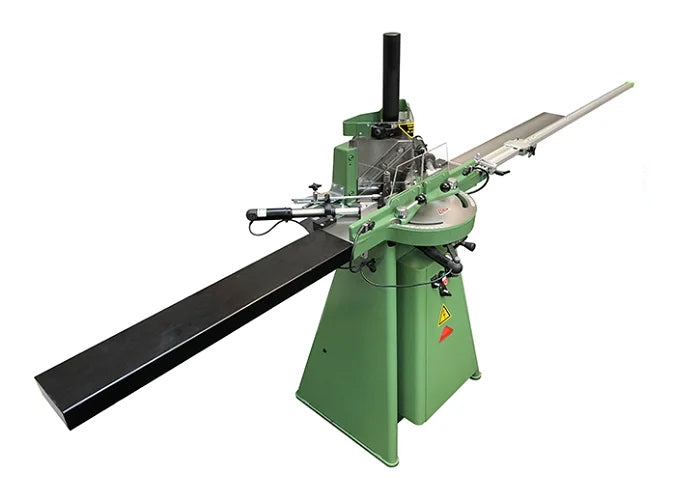

Morso E Future Green 1500mm Mitring Machine
A fully automatic, electric mitring machine with a two-hand release built on. The release mechanism makes the machine absolutely safe to operate as it is impossible to start the machine and touch the knives at the same time.
With Morso E Future Green you achieve the clean smooth cut by automatically cutting of the work piece in two cuts. The cutting time varies from 1 second and up, depending on the thickness of the work piece. Having finished the cutting, the knife block automatically returns to the starting position.

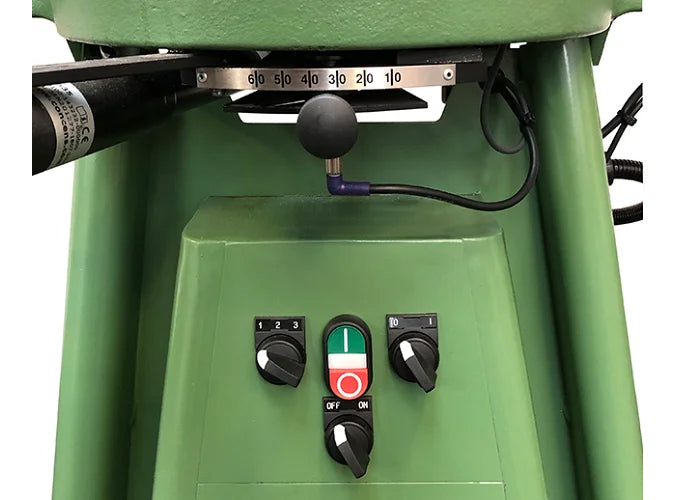

The starting position is horizontally adjustable up to 60 mm (2.4’’). Maximum width of the workpiece is 100 mm (4’’). From a 60 mm (2.4’’) width, the MORSØ-E Future Green will automatically cut the workpiece bit by bit. The variable starting position is adjusted by a handle.
The vertical movement of the knives is also adjustable with three different heights. One for small workpieces, a second for medium-sized workpieces and a third for very thick workpieces (up to 180 mm / 7’’).
Perfect for repetition work:
- Faster than a double mitre saw
- Dust free
- Almost silent operation
- Cuts an exact 45-degree mitre
Product Specifications:
Double mitre: 45°
Single mitre up to 90°

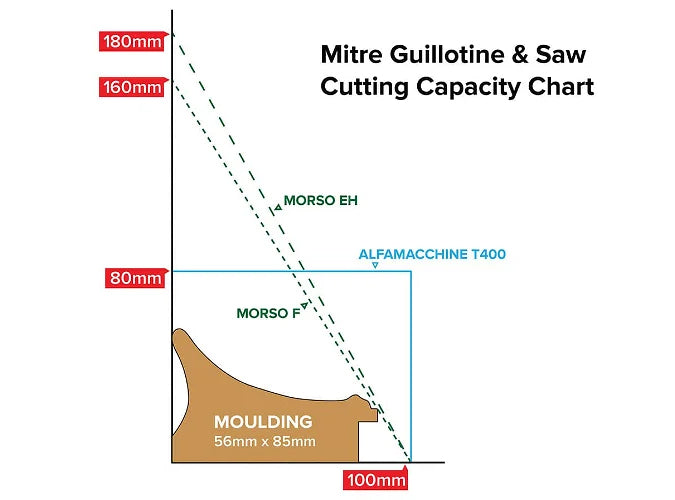

Cutting width, max. 100 mm
Cutting height, max. 180 mm
Square cutting: 70/70 mm
Measuring scale up to 1,500 mm
Motor, three phase: 0.55 kW
Net weight: 135 kg
Local Gulf Regional Stockiest - UAE Emirates, Kuwait, Saudi Arabia, Oman, Bahrain, Pakistan, Dubai, Iran, Qatar.
